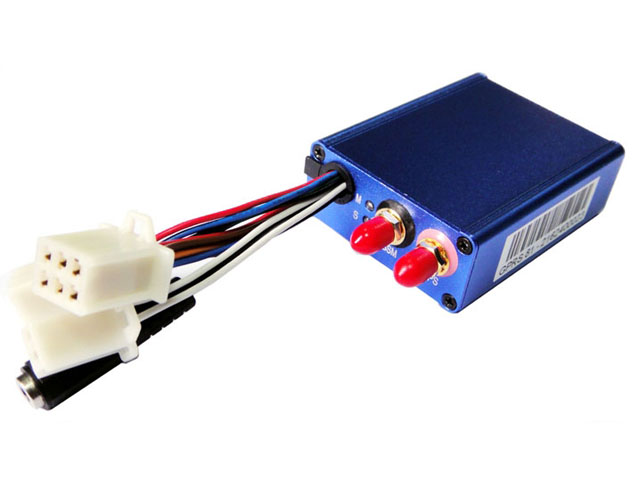

FEG BLUE


Feature of FEG BLUE :

  • Can Track by SMS/GPRS
  • Can Track by Time Interval
  • Can Track by Distance Interval
  • Inbuilt Motion Sensor
  • Geo-fence Alert(With 108 rectangle area) or 20 Polygon Area
  • GPS Blind Area data storage with up to 30,000 log capacity

Main Feature of FEG BLUE :

  • U-blox and Quad Band 850/900/1800/1900Mhz
  • UDP and TCP/IP Connection
  • 4-Pin connector
  • 1 ignition input 7~60VDC
  • 1 SOS input 1 positive input 7~60VDC
  • 1 relay output 500mA 12VDC
  • 1 RS232 connection
  • External Power Cut Alarm
  • GPS Antenna Cut Alarm

Performance of FEG BLUE :

  • Working Voltage: 10 VDC ~ 60 VDC
  • Working current: Average – 65mA @ DC 12V
  • GSM/GPRS Module Performance
  • Class 4 (2 Watts @ GSM 900 MHz)
  • Class 1 (1 Watt @ GSM 1800 MHz)

GPS Receiver Performance :

  • Receiver Module have 20/50 Channels, -159dB
  • Antenna have GPS SMA connection, – 26dB

Environment Specifications of FEG BLUE :

  • Operating Temperature between -20°C ~ +60°C
  • Storage Temperature between -10°C ~ +80°C
  • Working Humidity between 5% RH ~ 95% RH
